Efficency for dressing CVD diamond Multi Point Dresser - 4 log straight
CVD (chemical vapour deposition) synthetic diamond products are manufactured
by a chemical vapour deposition (CVD) process and are subject to tightly controlled
growth conditions during manufacturing and equally stringent quality control procedures.
The result of production is polycrystalline CVD diamond, an engineered material that is
highly consistent and has predictable properties and behaviour required for cutting tool,
wire drawing and dressing applications. By contrast, natural diamond material varies
significantly in key properties and requires careful selection.
We are able to provide Lapped or Polished Finish for different applications.
Lapped Finish is mainly applied for dressing tools, Polished Finish is used for cutting tools
especially for graphite cutting.
MATERIAL INTRODUCTION
Material: CVDD
Features:CVDD is a pure carbon material without binder with extreme abrasion resistance
and good thermal suitability.Due to its perfect cutting edge suitable fro appications where
mirror finishes are required.
Application:Application areas include the machining of abrasive workpiece such as MMC,
high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and
other applications..
PRODUCTION INFOMATION AND CLASSIFICATION
| Item | Dimension(Max) | Thickness | Blank | Tip | Dresser | μm | Finish |
| Color | mm | mm | μm | μm |
| CVDH | Black | 25.4*25.4 | 0.3-1.3 | ±20/±50 | ±20/±50 | ±20/±50 | Single Lap
Double Lap
Single Polish
Double Polish |
| CVDN | Black | 25.4*25.4 | 0.25-1.0 | ±20/±50 | ±20/±50 | ±20/±50 |
| CVDJ | Semi Transparency | 70 | 0.5-1.3 | ±20/±50 | ±20/±50 | ±20/±50 |
| Dresser Application | Cutting Application | Thermal Application | Thermal Application |
| CVDH | ★★★★ | ★★★★ | ★★★ |
| CVDN | ★★★ | ★★★★★ | ★★★★ |
| CVDJ | ★★★★★ | ★★★★ | ★★★★★ |
APPLICATIONS
CVD Diamond Multi Point Dresser is made of CVD diamond and high grade extra fine metal powder by
throughing import automated equipment which makes Dresser has excellent quality consistency,
high baze strength and long life time.
- Silicon carbide
- Aluminium oxide(Corundum)
SPECIFICATIONS

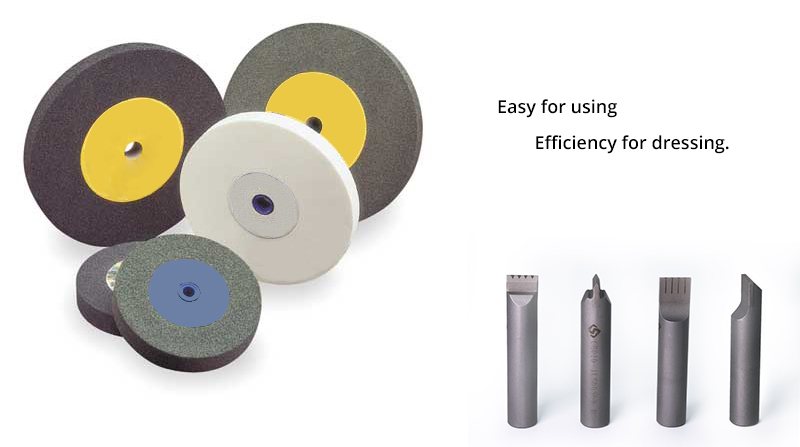

| ● 4pcs Diamond join dressing work,increase dressing dfficiency.
● Easy for using,do not need change angles oftenly

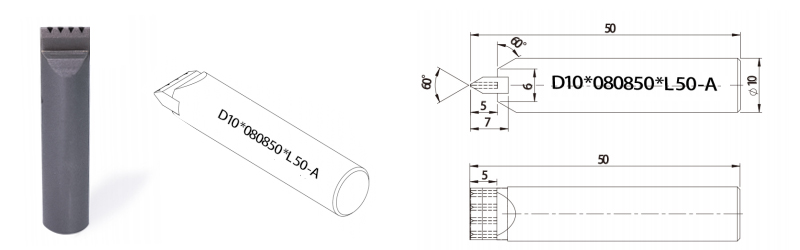

● Long life service time and high performance - Type A is for rough dressing
|
| Code | Processing | Wheel Diameter | Grain(mesh) |
| 6200325 | Roughing | D<750mm | #46-#150 |
| Code | Sepcification | CVD Grade | CVD Log | Insert Angle | Log Quantity | Blade Angle | Tip Angle | Shank | Shank Length |
| 6200325 | D10x080850xL50-A | CVDH | 5.0x0.8x0.8 | 45° | 4 | 0° | 60° | Straight | 50 |

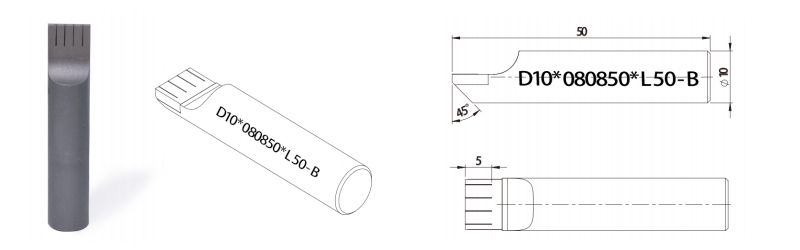

2. Type B is for finish dressing
| Code | Processing | Wheel Diameter | Grain(mesh) |
| 6200326 | Fininshing | D<750mm | #46-#150 |
| Code | Sepcification | CVD Grade | CVD Log | Insert Angle | Log Quantity | Blade Angle | Tip Angle | Shank | Shank Length |
| 6200326 | D10x080850xL50-B | CVDJ | 5.0x0.8x0.8 | 45° | 4 | 0° | / | Four Flats | 50 |
About us
| CVD Diamond Multi Point Dresser is made of CVD diamond and high grade extra fine metal powder by throughing import automated equipment which makes Supower Dresser has excellent quality consistancy,high baze strength and long life time. |
